Worm Gearmotors:

A 04
Power P1 0,09 ... 55 kW Nominal torque MN2≤ 1900 daN m Transmission ratio iN 7,1 ... 16 000 Rigid and precise monolithic casing in cast iron Compliance with ATEX
AS07 STANDARDFIT
Power P1 0,09 ... 5,5 kW Nominal torque MN2≤ 670 N m Transmission ratio iN 6...75 Rigid and precise cast iron monolithic casing. Integral with casing and B14 flange on 2 faces.

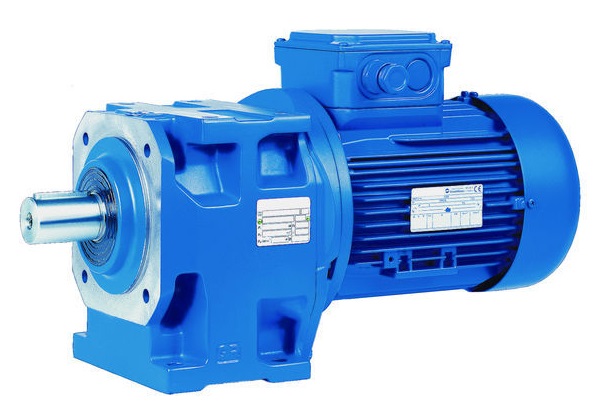

Coaxical Gearmotors:

E04 STANDARDFIT
Power P1 0,09 ...75 kW Nominal torque MN2 ≤ 1 000 daN m Transmission ratio iN 4 ...6 300 Pinion of final stage with three bearings Compliance with ATEX
ESO7 STANDARDFIT
Power P1 0,09 ... 11 kW Nominal torque MN2≤ 900 N m Transmission ratio iN 4...200 Foot mounting integral with casing. Rigid and precise cast iron monolithic casing.

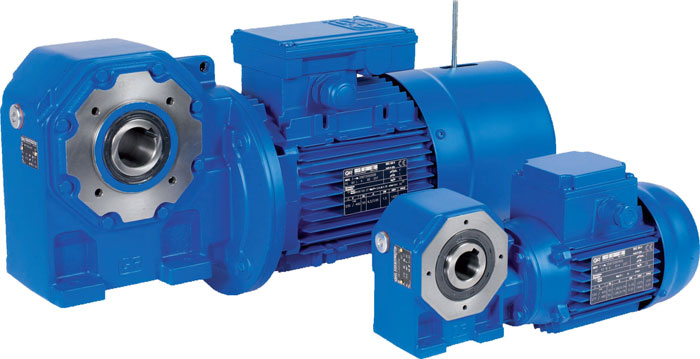

Helical and bevel helical gear units for Cat G:

18 Sizes (100 ... 451) Power PN2 ≤ 1,710 kW Nominal torque TN2 ≤ 132,200 N m Transmission ratio iN 6,3 ... 28

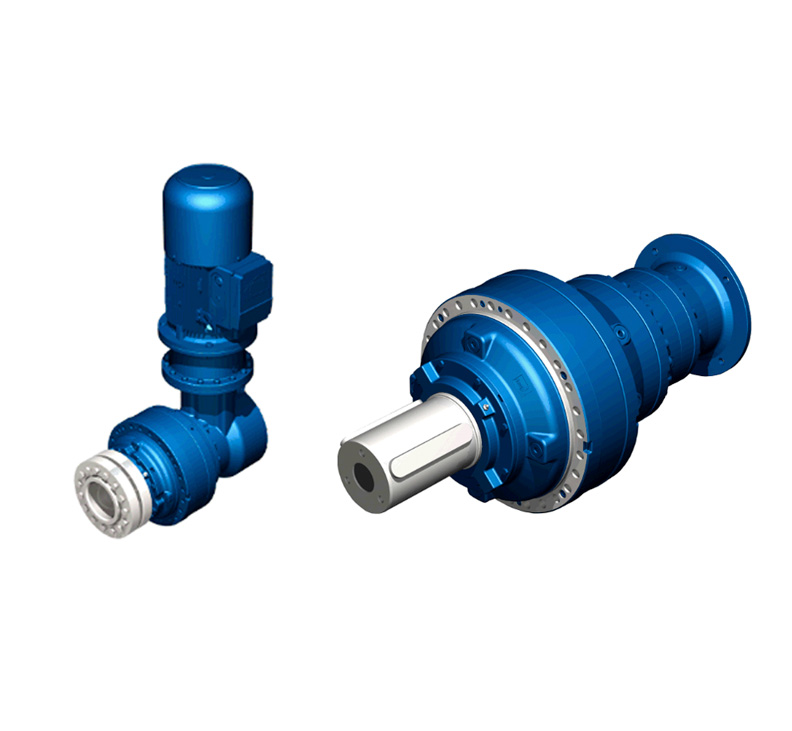

Planetary gearmotors Cat. EP:

Power P10,18...90 kW Nominal torque TN2 1600...710,000 Nm Transmission ratio i N3,55...3550 (in line) Transmission ratio i N9...2440 (bevel helical)
